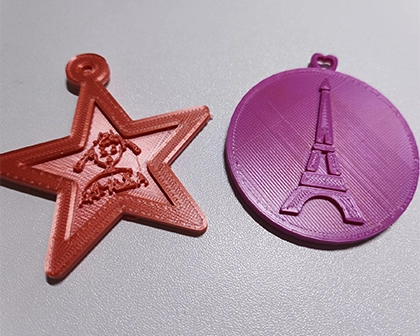

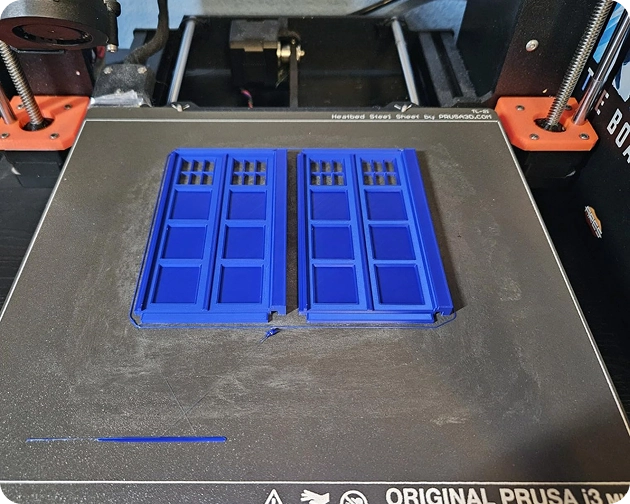

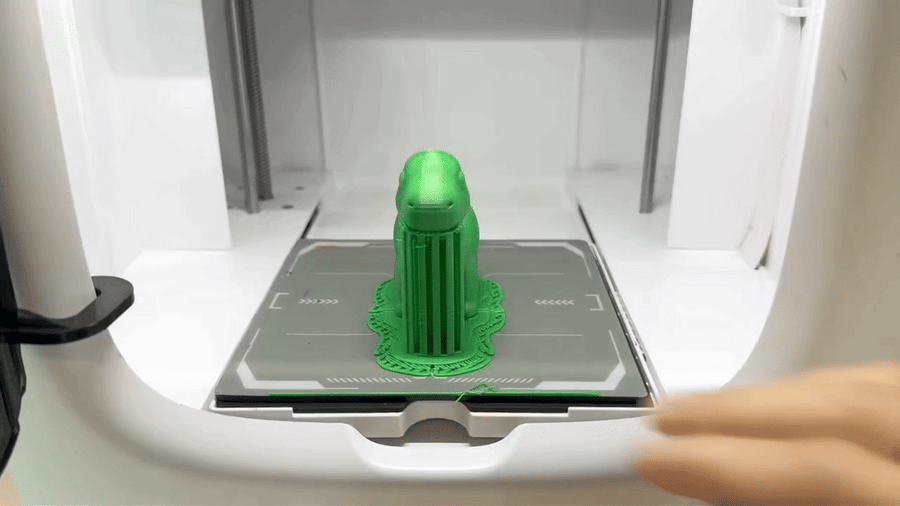

The best 3D-print orientation balances five checks: stable bed contact, expected load direction, support use, visible-surface quality, and fit inside the build volume. No single position wins for every model. Start with a broad stable face, then inspect the trade-offs in the slicer. A flatter position may reduce height or support, but a large flat footprint can still warp, hide important detail, weaken a loaded feature, or exceed the available plate area. Use the 10 rules below as a decision sequence, not absolute laws. Preview the complete toolpath and print the risky feature at full scale when strength, fit, overhangs, or support removal matter. Quick pick: choose a starting orientation What you are printing Start with Why Flat toy, keychain, or nameplate A broad stable face on the plate Usually improves bed contact and can reduce support Tall figure or tower Upright only when the base is stable; otherwise test a tilt or split Reduces tipping risk without assuming one angle works for every model Long arm, wing, or ledge Rotate while watching the support preview The useful position depends on slope, cooling, speed, and surface priority Part that will be pulled or bent Align the load with continuous extrusion paths where practical Reduces the chance that the load peels layer interfaces apart Bowl, cup, or hollow shell Keep cavities open or split at a logical seam Avoids trapped support and improves access for inspection Model near the printer's size limit Measure, preview, then scale or split Confirms the complete model, brim, and travel fit the documented build area Why orientation decides whether a print succeeds An FDM printer builds one layer over another, so the finished part can behave differently by direction. Interlayer bonding may be weaker than continuous extrusion paths under some loads, but material, geometry, temperature, walls, orientation, and the test method all affect the result. Many tensile studies report lower strength when the applied load tends to separate layer interfaces, but the result depends on the specimen and force direction. Orient critical features so expected loads are carried along continuous extrusion paths where practical, then test the finished part in its intended use. A broader face can improve mechanical stability and reduce tipping, but it does not guarantee less warping. Large flat footprints can accumulate cooling stress and lift at edges, so compare contact area, thermal behavior, visible surfaces, and the validated profile. Rule of thumbStart with a broad stable face and align continuous extrusion paths with the expected load where practical. Then confirm support, visible surfaces, dimensions, and build-volume fit in the slicer; no single orientation rule prevents every failure. The 10 beginner rules for orienting a 3D model 1. Put the largest flat face on the build plate Start by placing a broad stable face on the build plate, then inspect the consequences. More contact may improve stability and reduce the need for a brim or raft, but another orientation may be better when it protects detail, improves load direction, reduces support scars, or fits the build volume. 2. Test a tilt before adding support Unsupported plastic can sag, but there is no single overhang or bridge number that fits every printer, material, and profile. Rotate the model, inspect the slicer preview, and run a small test when the geometry is critical. A modest tilt can reduce support, while cooling, speed, layer height, and shape determine how far the printer can bridge or overhang reliably. 3. Orient loaded features to avoid peeling layers apart For a printed hook or bracket, compare how the expected load crosses the layer interfaces. An upright position may expose a peeling failure, while a flatter position may align more continuous extrusion paths with the load. Confirm the result with the intended material, profile, and a representative load test. 4. Hide support scars where nobody looks Support material can leave a rough contact surface after removal. Place support contact on the back, base, or a surface that will be joined when that choice does not create a worse strength, fit, or stability problem. For a figurine, test a small tilt in preview before assuming one angle will protect the face. 5. Confirm the model fits the build volume in that orientation A 150 mm-tall figure does not fit upright in a 120 mm Z build height. It must be scaled, tilted if the full geometry remains within all printable bounds, or split into parts; confirm the complete sliced toolpath, not only the bounding box. Safety note for home and classroom printingOrientation can change print duration and support removal. Follow the printer manual and applicable CDC/NIOSH and local guidance for enclosure use, placement, ventilation, material, operating temperature, cooling time, supervision, and opening the machine. Do not apply a universal wait time or material claim to every printer; verify the exact product and room setup. 6. Keep cavity openings accessible and avoid unsupported ceilings Cups, bowls, helmets, and open shells all cause the same trouble when the opening faces down. The roof of the cavity becomes a wide unsupported ceiling. Open side up. Flip it and that ceiling becomes a floor, printed straight onto the layer below. If flipping ruins the outside finish, split the shape at its widest point and print two halves face down. 7. Keep small pins and thin details off the top of a tall print Thin, tall features are vulnerable when each layer is deposited before the previous one cools. Reliability depends on diameter, height, nozzle, material, and profile; print one representative feature or multiple copies spaced apart to test cooling before committing to the full model. 8. Split stubborn models into two halves Some shapes have no clearly useful one-piece orientation. A sphere, for example, presents curved undersides in every position. Splitting the model at a logical seam may reduce support and improve access to the surfaces, but the result still depends on alignment features, adhesive, finishing, and the intended load. 9. Calibrate clearance for parts that must fit together Do not assume a universal clearance. Print a small fit coupon with several gaps—for example, values around the designer’s starting estimate—using the exact material, orientation, and profile. Then select the fit that passes the intended assembly and use test. 10. Run a small test before committing to the full print Test the risky feature at full scale: cut out the base, joint, overhang, or support-contact area and print that section with the final orientation and profile. A uniformly scaled model does not preserve printability or fit. Vertical or horizontal? A side-by-side look Factor Flat or on edge Upright (vertical) Bed adhesion Usually more stable when it creates a broad footprint. Can be less stable on a narrow base and may need a brim. Support material Often less, depending on geometry Often more, especially on arms and ledges Strength under pull May be higher when the load aligns with continuous extrusion paths. May be weaker when the load pulls across layer joints. Surface finish Smooth on the bed-contact face; sloped sides still show layers Visible layer stepping down the whole height Print time May be shorter when the orientation reduces height and support May be longer when the orientation increases height or support Fits build height Limited by plate width Good for tall, narrow models Dimensional accuracy of holes Horizontal holes may sag or become less round, depending on size, cooling, layer height, and support Vertical holes may preserve roundness more easily, but first-layer and dimensional calibration still matter Best for Broad parts and loaded features when the orientation aligns with the expected force Tall parts that have a stable base or require vertical features Neither answer is universal. A broad stable face is often a useful starting point, while an upright orientation may be necessary for a tall part, a critical hole, a visible surface, or build-volume fit. Confirm adhesion, support, finish, strength direction, and dimensions in the preview. Where orientation happens inside a guided app Orientation may be handled in a full desktop slicer or inside a guided app. For younger beginners, look for a workflow that previews the model's contact area and supports while still giving an adult a clear way to review or change the result. Three current specifications matter for orientation decisions: usable build volume, supported layer-height profiles, and the printer's documented material and speed limits. Verify them on the exact product page, then use the slicer preview to confirm fit, supports, and estimated duration rather than transferring one model's limits to another printer. For a guided family workflow, verify enclosure behavior, leveling steps, material support, build volume, preview access, and what an adult must review before printing. Do not infer these details from a product image or from the phrase kid-friendly. For the model-library side, verify how files are reviewed, how often content changes, whether instructions and age guidance are provided, and whether a child can customize a model without losing an adult review step. WHEN COMPARING A KID-FRIENDLY 3D PRINTER, CHECK BUILD VOLUME, MODEL PREVIEW, SUPPORT CONTROLS, AND HOW EASILY AN ADULT CAN REVIEW ORIENTATION BEFORE PRINTING. Common beginner mistakes and the quick fix What you see What it means Fix it by Corners of the base curl upward Warping. Too little plate contact or uneven cooling. Re-orient onto a wider face. Round or chamfer sharp bottom corners. Bottom layer bulges outward Elephant foot. Nozzle sat too close, or the bed ran hot. Add a small chamfer to bottom edges. Recheck levelling. Print detaches partway up Base footprint was too small for the height. Lay the model down, or split it and print in two parts. Drooping strands under a ledge or bridge The unsupported angle or bridge exceeds what the current printer and profile can handle. Rotate while checking the preview, or add supports where the test shows they are needed. Toy snaps at the same spot every time Layer joints sit across the load. Re-orient so layers run along the direction of pull. Rough patches on the visible face Supports were touching a display surface. Rotate so supports contact the back or base instead. Model is missing chunks in the app preview Broken or non-watertight mesh, not an orientation problem. Repair the mesh, or pick a reviewed model from the library. Print never starts because it will not fit Rotation pushed the model past the build area. Place it diagonally, scale down, or split it. When to re-orient, and when to just add supports Re-orient the model when: The part will be pulled, bent, or dropped, and strength matters more than looks. Supports would land on a face, a logo, or a mating surface. The current orientation leaves an unstable footprint and a broader face, split, brim, or other tested change is available. A tested rotation reduces a critical overhang without creating a worse support, finish, fit, or strength problem elsewhere. Print time is long and a flatter position would cut layer count. Add supports instead when: The model is decorative and surface scars land somewhere hidden anyway. Every orientation you try creates a new overhang somewhere else. A round horizontal hole has to stay dimensionally accurate. The model only fits the build volume in one position. Your child chose the pose and the print is about their design, not efficiency. Conclusion Orientation costs no filament to test in the slicer, but a poor choice can add support, reduce bed contact, damage a visible face, or weaken a loaded feature. Use five checks: footprint, load direction, overhangs, visible surfaces, and build-volume fit. For families, these orientation rules are useful starting points, but the exact workflow and supervision requirements depend on the printer being used. If you are considering an AOSEED model, verify the exact variant’s current age and supervision guidance, operating requirements, software and model-library features, price, warranty, and return terms on AOSEED’s current regional product page, manual, and policies before buying. FAQs What is the best orientation for a 3D print? There is no universal best orientation. Choose the position that balances bed contact, support use, surface finish, strength direction, build-volume fit, and removal risk for the specific model. Should the largest flat side always face the build plate? It is often a good starting point, but not a rule. Use another face when the flat side contains important detail, creates trapped supports, weakens the part under its expected load, or does not fit the available build area. How does orientation affect 3D-print strength? Material-extrusion prints are directional, so the same model can fail differently after rotation. Loads carried along continuous extrusion paths are often better supported. Loads that peel layers apart can expose weaker interfaces. Thin pins, hinge points, and screw features deserve their own orientation check. How does orientation affect support material? Rotating a model changes which surfaces begin in mid-air and which slopes exceed the printer's unsupported capability. A small tilt may reduce support, but the result depends on geometry, cooling, speed, layer height, and the selected support settings. How should I arrange several models on the build plate? Arrange them so each model remains inside the printable area and the printer can travel safely between them. Give each model enough spacing for brims, skirts, and toolhead clearance. Keep tall narrow parts away from crowded travel paths. Confirm all objects use compatible material and profile settings. Preview the complete plate, not only the first object. What if no orientation avoids supports? If every orientation leaves a critical overhang, use the least damaging option. Place support contact on a hidden or easy-to-finish surface. Use support blockers or paint-on supports when the slicer provides them. Split the model at a logical seam and join the parts after printing. Print a small test section before committing to the full model. Sources National Institute of Standards and Technology, "Materials Testing Standards for Additive Manufacturing of Polymer Materials" Polymers (peer-reviewed, via PubMed Central), "Process Design and Parameters Interaction in Material Extrusion 3D Printing: A Review" CDC / National Institute for Occupational Safety and Health, "Approaches to Safe 3D Printing: A Guide for Makerspace Users, Schools, Libraries, and Small Businesses" Washington State Department of Health, "3D Printers" National Institutes of Health, NIH 3D, "Frequently Asked Questions"

A 3D-printing slicer converts a digital model plus the selected printer and material profile into layer-by-layer toolpaths and a printer-ready file. Without that step, a raw model does not tell the machine where to move, when to extrude, or which temperatures and speeds to use. Parents do not need to tune every control. Start with a manufacturer-tested profile, then understand the nine settings that most directly affect detail, structure, supports, adhesion, material flow, duration, and cooling. Before exporting, open the layer preview and check model fit, first-layer contact, supports, walls, infill, estimated time, and filament. Safe operation still depends on the exact printer manual, approved material, responsible-adult supervision, placement, ventilation or other exposure controls, and restricted access to hot and moving parts. The 9 Settings at a Glance Setting What It Changes Where to Start Layer height Surface smoothness and total print time Leave the standard profile alone Infill density How solid the inside is, plus filament used Low for toys and display pieces Wall count Shell thickness and real-world durability Raise this before raising infill Supports Whether overhangs print or sag Let the slicer generate them, then look Print speed Job length and how hard the motion system works Tested profile only, no manual bump Nozzle temperature Whether filament flows and bonds Match the filament, then stop Bed temperature First-layer grip on the plate Match the filament and surface Build plate adhesion Skirt, brim, or raft under the model Lightest option that actually works Cooling fan speed How fast fresh plastic hardens Use the material preset What Is a Slicer in 3D Printing? A slicer converts a digital model and the selected printer/material settings into layer-by-layer toolpaths. The original file may remain unchanged, but orientation, scale, mesh repair, compensation, and printable-resolution limits can change the resulting toolpath and effective printed geometry. The description holds up at industrial scale too. NIST describes additive manufacturing as fabricating parts directly from an electronic file that is virtually sliced into many thin layers, then built up in sequence into a finished part. A desktop printer in a kitchen and a metal system in a factory both depend on that same slicing step. How the Slicer Connects the Model to the Printer A basic mesh such as STL mainly describes surface geometry. Richer formats such as 3MF can also preserve units, materials, components, metadata, and manufacturing information, but the slicer still needs a correct printer and material profile to create executable toolpaths. Picture that downloaded dinosaur. The file knows the shape of the tail. It has no opinion on where the nozzle should start, how thick each layer should be, whether the front legs need something underneath them, or how hot the plastic should get. The slicer answers every one of those questions before printing begins. Shape in. Manufacturing plan out. What Goes In, and What Comes Out STL, OBJ, and 3MF are common inputs in consumer filament workflows, but support varies by slicer. Confirm the exact software’s supported formats; 3MF can preserve richer project and manufacturing data, while STL mainly carries triangulated surface geometry and may not preserve units. 3MF is the newest of the three and was built to hold richer manufacturing data than raw geometry. It has since become an international standard: the 3MF Consortium publishes the specification suite as ISO/IEC 25422:2025, and one of its published extensions covers 2D sliced model data inside the package itself. The output differs from the input. Many filament printers receive G-code, while others use a machine-specific package. The output contains printer instructions; the input may contain only geometry or may preserve richer project data, depending on the format. TIPCheck the file type before choosing a model. If the slicer cannot open it, select a supported export or return to the original design file. Keep the editable source when a model was made in CAD, because revising the source is usually more reliable than repairing an exported mesh. How Slicing Works, Step by Step The workflow is short. Six steps. A beginner can follow all of them on a first print. Import the model onto the virtual build plate and confirm it fits inside the printable area. Select the printer profile and the filament. This is the step that carries build dimensions, nozzle setup, and machine behaviour. Position and orient the object. Which face touches the plate changes supports, strength, surface finish, and time. Choose or accept the print settings. A tested profile handles most of this automatically. Press slice. The software divides the model into horizontal sections and calculates every toolpath. Open the preview, scroll through the layers, then export the printer-ready file. The preview is the final checkpoint before export. Use it to confirm first-layer contact, supports, walls, infill, fit within the build area, and the estimated time and filament. The 9 Slicer Settings Parents Need to Know Start from a tested printer and material profile. Use the nine settings below to understand why a print came out the way it did, not as a checklist to change before the first attempt. 1. Layer Height Layer height sets the thickness of each horizontal slice. Thinner layers mean more of them, which shows up as smoother curves and a longer job. A rounded helmet benefits visibly. A rectangular box does not. 2. Infill Density A display figure rarely needs a solid core, but it may need enough internal support for top surfaces and handling. Start with the validated profile, inspect the sliced preview and estimated grams, and adjust only for the model’s geometry and use. 3. Wall Count Walls, sometimes called perimeters, form the outer shell. Adding walls thickens that shell and may strengthen a shell-dominated part more efficiently than raising infill, but the result depends on geometry, load, material, orientation, and print quality. Test the critical feature. 4. Supports A printer can bridge some gaps and build some overhangs without support, but the reliable limit depends on geometry, cooling, speed, layer height, material, and profile. The slicer adds temporary support where the selected rules require it, and that support must be removed after printing. Rotating the model often beats increasing support density. Try the rotation first. 5. Print Speed Speed controls how fast the toolhead completes its paths. A slicer normally runs different speeds for outer walls, infill, first layers, and travel moves. One number rarely describes the whole job. Let the machine prove itself before you push it. 6. Nozzle Temperature The nozzle has to melt filament enough for steady extrusion and layer bonding. Too cold, and layers separate. Too hot brings its own defects. Temperature is not only a quality setting. Washington State Department of Health guidance for schools tells staff to select the lowest temperature appropriate to the filament in use, specifically to limit unwanted emissions. The same logic applies on a kitchen counter. Match the preset. Then leave it alone. 7. Bed Temperature Bed temperature matters at the foundation. Enough heat helps the first layer stay put while the rest of the model builds on top. Some PLA profiles can print without a heated bed, which removes that specific heated-surface exposure. The nozzle and hot end, freshly extruded plastic, and moving parts still require restricted access, responsible adult supervision, and the controls specified in the current manual. 8. Build Plate Adhesion Three options show up here. They are not interchangeable. A skirt prints around the model without touching it, which primes the nozzle and gives an early read on flow. A brim attaches to the first layer and widens the footprint. A raft builds a whole platform underneath. Use the least intrusive adhesion aid that solves the observed problem. Start from the tested profile and first-layer setup; a raft on a broad stable base may add unnecessary material and cleanup. 9. Cooling Fan Speed Cooling decides how quickly fresh plastic sets. The right behaviour changes with the material and the stage of the print, which is why profiles often reduce cooling on early layers and raise it later. Maximum fan is not the answer. WORTH KNOWING Two of these nine settings touch home safety, not just print quality. The nozzle block and heated bed reach temperatures that burn on contact, and Princeton University’s environmental health and safety office notes that the heat needed to melt feedstock is itself a fire risk during a malfunction. Its guidance prefers fully enclosed printers with interlocked guards, and it recommends waiting after a job finishes so the machine cools and contaminants disperse before the lid opens. On emissions, NIOSH published a 40-page guide for makerspaces, schools, and libraries after evaluating printer and filament combinations for ultrafine particles and chemical exposure. Ventilate the room. Keep the printer away from where children sit for long stretches. Do not hover over a running machine. Layer Height, Infill, and Print Time Layer height, infill, and walls can create large trade-offs among finish, structure, material, and duration. Read the slicer estimate for the actual model before committing to a long print. Choice What You Gain What It Costs Sensible For Fine layers Smoother curves, sharper small detail Noticeably longer job for the same height Miniatures, rounded shapes, gifts Standard layers Balanced finish and time Nothing much, which is why it is the default Toys, organisers, school models Thick layers Fast result Visible stepping on curves Fit tests and quick prototypes Low infill Less filament, shorter job Softer interior under load Display pieces, decorations High infill Denser core More plastic and a lot more time Only when the part carries real force Extra walls Real strength gain per gram Small time and material increase Brackets, hooks, usable parts Read the estimate after every meaningful change. If a small model suddenly takes much longer or uses substantially more filament, compare the setting changes and preview before exporting. What G-Code Actually Tells the Printer G-code is the command language many filament printers use. Most beginners will not write it directly because the slicer generates it, but a short preview helps explain what the printer has been instructed to do. The table below shows common Marlin-style examples, not commands guaranteed for every printer or firmware. The slicer normally generates them automatically; beginners should verify the exact machine documentation rather than editing G-code by hand. Command What It Does Which Slicer Setting Produced It G0 / G1 Move in a straight line, with or without extruding Speed, layer height, toolpath calculation M104 / M109 Set the hotend temperature, or set it and wait Nozzle temperature M140 / M190 Set the bed temperature, or set it and wait Bed temperature M106 / M107 Set fan speed, or turn the fan off Cooling fan speed M221 Set the flow percentage applied to extrusion moves Flow-percentage override applied to extrusion moves; firmware-specific One file. Thousands of these lines. The slicer wrote all of them from the choices made on screen. GUIDED WORKFLOW OR SETTINGS PANEL?A beginner may benefit from tested presets and fewer visible choices. A more advanced learner may benefit from a layer preview and documented controls. The right balance depends on who will diagnose failed prints and how much an adult will supervise. How Much Slicer Control Does Your Child Actually Need? This is the question the nine settings are really for. Some children want to tune. Others want a finished dinosaur. Both are fine. Ask the child. The answer depends on them, not the machine. When comparing printer workflows, check the current product page, manual, and app or software documentation for the exact model and region. Confirm which controls are available, which presets are manufacturer-approved, and what age and supervision guidance applies; recheck these details before publication because software, bundles, and product terms can change. Workflow feature Preset-led printer Advanced-control printer Typical fit Younger beginners who want quick starts Older learners who want to diagnose and tune Settings access Tested profiles with fewer visible controls Layer height, walls, supports, speed, temperature, and cooling Preview May be simplified or hidden; verify before buying Layer preview helps diagnose supports, time, and toolpaths What to verify Offline printing, profile updates, and parent controls Compatible slicer, correct printer profile, and export options When Presets Are Enough Presets may be enough when the learner wants a guided model-to-print workflow and is not yet interested in changing settings. Follow the exact printer’s verified age and responsible-adult supervision guidance regardless of software complexity. The main use is the model library and light customisation. You would rather not be asked about infill percentages on a school night. The supported material and tested PLA profiles cover the projects you actually plan to make. When You Want Real Slicer Control Your child already asks why a print failed instead of just being annoyed. School or club projects need parts that fit together and hold up. You want a preview screen so problems get caught before filament is spent. A second material and a larger build area would actually get used. Slicer Mistakes That Waste Filament Before changing hardware, check these five common profile and preview errors. If the same failure persists across known-good files and approved profiles—or involves heat, electrical, motion, or sensor faults—stop the printer and follow the manual or contact support. Wrong printer profile. Build dimensions and machine settings come from this choice. Two similar printers in one list is all it takes. Infill raised without a defined need. A decorative toy at high density may add print time and material without correcting weak geometry, poor layer bonding, or the wrong orientation. Missing supports. The solid model view looks fine. The sliced view is where you find the arm starting in mid-air. Speed increased beyond the printer and material profile. A slower completed print is more useful than a faster setting that creates repeated failures; change speed only within documented limits and evaluate one change at a time. Six settings changed at once. If the next print is different, you will not know which change did it. Move one thing, slice, compare. That last one is the most useful habit a child can pick up here. Change one variable. Observe. Adjust. A Preview Check Before You Press Print The preview shows the toolpaths the printer has been instructed to follow, which can differ from the unsliced model view. The five checks below can reveal common problems before filament is used. Orientation. Is the model resting on a sensible face rather than balanced on a point? First layer. Drag the slider to the bottom and see how much of the model touches the plate. Supports. Find where they begin. Confirm the important overhangs got some. Walls and infill. Move to the middle of the model. The interior should look the way you intended. Estimate. Compare time and filament against what the object is worth to you. TIPReview the preview with the child when appropriate. It is a practical way to connect orientation, supports, walls, infill, time, and filament use with the toolpaths the printer will follow. Conclusion A slicer is the translator between a shape and a machine. It cuts the model into layers, plans every path, applies the printer and material settings, and writes the file the printer executes. Nothing more. You do not need to master it. Start from a tested profile, learn what layer height, infill, walls, supports, speed, the two temperatures, adhesion, and cooling each do, and open the preview before every job. Match the filament temperature rather than raising it, because that setting affects the air in the room as well as the finish on the print. If you are choosing hardware, compare printers by profile quality, preview access, export options, supported materials, and how much control the learner can use under responsible adult supervision. Before buying, verify the exact model and region on the manufacturer’s current product page, manual, and software documentation for age guidance, supervision requirements, current price, warranty, returns, and supported features. FAQs What does a 3D-printing slicer do? A slicer turns a 3D model into printer-specific layers and toolpaths. It applies the printer profile, material, orientation, walls, infill, supports, temperatures, speeds, and cooling settings, then produces the file the printer can run. Can you 3D print without using a slicer? Only when someone else has already sliced the model for the exact printer and material, or when slicing is built into a guided app or cloud workflow. A raw STL, OBJ, or 3MF model still needs to be converted into printer instructions somewhere. Can I use any slicer with any 3D printer? Not automatically. Compatibility depends on whether the slicer has a correct printer profile and can export a format the machine accepts. Build volume and origin must match the printer. Nozzle, start and end routines, and firmware commands must be correct. The material profile must stay within the printer's supported temperatures. Which slicer settings should a beginner change first? Start with a tested preset and change only settings that answer a clear project need. Layer height for detail versus time Walls and infill for structure Supports and build-plate adhesion for geometry Temperature only when the filament or manufacturer profile requires it How accurate are slicer time and filament estimates? They are planning estimates, not guarantees. Accuracy improves with a correct printer profile, acceleration limits, filament diameter, and start/end routines; actual time can still change because of firmware behavior, heating, calibration, or pauses. What should I check in the preview before printing? Use the layer preview as the final checkpoint. Confirm the model is inside the build area and has a stable first layer. Inspect overhangs, bridges, and where supports begin. Check walls, infill, and top surfaces at several heights. Review the estimated time and filament before exporting. Sources National Institute of Standards and Technology, “Measurement Science for Additive Manufacturing Program” National Institute for Occupational Safety and Health, “Approaches to Safe 3D Printing: A Guide for Makerspace Users, Schools, Libraries, and Small Businesses” Washington State Department of Health, “3D Printers” Princeton University Office of Environmental Health and Safety, “3D Printers on Campus” 3MF Consortium, “3MF Specifications” Marlin Firmware, “G-code Index”

Layer height is the thickness of each horizontal slice along the Z axis. Lower values create more layers and can smooth curves, but they usually extend print time; higher values create fewer layers and more visible stepping. Nozzle diameter helps bound the usable range, but it does not define a universal setting by itself. Start with the exact printer's validated nozzle, material, and slicer profile, then compare a fine, standard, or draft profile on the same model. For many prints made with a 0.4 mm nozzle, the manufacturer's tested standard profile is the most reliable starting point. Move thinner only when visible vertical detail earns the added time, and move thicker only when the approved profile supports it. Layer Height What You Get Common Uses 0.05 to 0.10 mm Finest vertical detail, longest print time Miniatures, faces, decorative curves 0.12 to 0.15 mm Noticeably smoother, still slow Display models, shallow slopes 0.16 to 0.20 mm Balanced finish and duration Everyday parts, toys, organizers 0.25 to 0.30 mm Visible lines, much faster Large models, test fits, hidden parts 0.32 mm and above At or past the ceiling for a 0.4 mm nozzle Use only within a validated printer profile and check bonding What Is Layer Height in 3D Printing? Ask a slicer for 0.2 mm and it cuts the model into slices 0.2 mm thick along the vertical Z axis. Lower value, more layers. Higher value, fewer. That is the whole setting. The process underneath is additive. NIST describes additive manufacturing as building parts up layer by layer rather than cutting material away or moulding it, and layer height is how thick you make each of those steps. How the Slicer Turns a Model Into Layers Take a 20 mm model. At 0.2 mm the printer stacks about 100 layers to reach the top. At 0.1 mm, roughly 200. At 0.3 mm, about 67. Same object, three very different jobs. Every one of those layers still needs the nozzle to trace each wall, each infill pass, and each travel move the slicer planned. That is where the hours go. Thickness is not the only thing changing. How often the machine repeats the entire cross section changes with it. Millimeters, Microns, and Why Both Show Up Slicers show millimeters. Spec sheets often show microns. One micron is 0.001 mm. So 0.1 mm reads as 100 microns, and 0.2 mm reads as 200. Same thickness either way. Bigger numbers, nothing more, which is worth remembering when two printers get compared on paper. QUICK CLARIFICATION Layer height controls vertical resolution only. It does not narrow your nozzle. If a small logo or a 0.3 mm gap will not print, dropping from 0.2 mm to 0.08 mm rarely fixes it. Nozzle diameter is the limit there. Why Layer Height Matters More Than Most Slicer Settings Four outcomes move off one value. Detail, surface finish, duration, and to some degree how the part behaves under load. Not many settings reach that far. Detail and Surface Finish Thin layers sit the visible lines closer together. Curves and slopes read smoother. Thick layers leave ridges. You can feel them with a thumb. The mechanism is stair stepping. Curves get built from a stack of flat slices, and research on model orientation and surface roughness confirms that reducing layer thickness measurably reduces that effect. Shallow slopes show it worst. Flat walls barely change. The visible benefit depends on geometry. A plain rectangular box may show little change between a fine and standard profile, while a sculpted face or shallow curve may show clearer stepping; compare the preview and a small sample. Print Time Halve the layer height and you roughly double the layer count. Total time will not scale exactly, because first-layer time, acceleration, and travel moves behave differently. The direction holds anyway. Tall models feel it most. Slice the same file at two settings and compare the estimated duration, layer count, and preview before committing to the full print. This makes the trade-off visible on the actual model rather than relying on a generic time-saving claim. Strength, and Why the Answer Is Not Simple Layer height can affect measured strength, but the result depends on the exact material, specimen geometry, print orientation, wall and infill settings, temperature, and test method. Use study values only when the specimen and print conditions are fully reported, and do not treat tensile results as a direct measure of finished-toy impact or drop safety. The wider picture is messier. A review of FDM strength optimisation found tensile strength for PLA and ABS generally dropping as layer thickness rose, while impact resistance and compressive strength often moved the opposite way. So the honest answer depends on how the part gets loaded. Wall count, orientation, material, and temperature all pull on the result. For a bracket holding weight, adding perimeters usually does more than shaving 0.05 mm off the layer height. Print the real part. Load it properly. Comparison Point 0.1 mm 0.2 mm 0.3 mm Layers in a 20 mm model About 200 About 100 About 67 Surface lines Barely visible at arm’s length Visible but not harsh Clearly ridged Curve stepping Smallest steps Moderate Strong on shallow slopes Relative duration Longest Roughly half of 0.1 mm Shortest PLA tensile, tested average 32 MPa 30.19 MPa 28.75 MPa Sensible use Miniatures, display pieces Everyday prints Drafts, large parts The Relationship Between Layer Height and Nozzle Size How much plastic can leave the hot end in one line comes down to nozzle diameter. That puts real limits on how thick or thin a layer can usefully be. Hardware wins the argument. Why the Nozzle Sets the Ceiling A new line has to press against the layer beneath it. When the layer stands nearly as tall as the nozzle opening, the extrusion stays rounded instead of flattening into place. Contact area drops. Bonding suffers after that. Gaps open between lines. Surfaces roughen. Sometimes the hot end cannot melt and move material at the rate the toolpath is asking for. The 25% to 75% Guideline A common heuristic places layer height at roughly one-quarter to three-quarters of nozzle diameter, but it is not a universal specification. Use only values validated for the exact printer, nozzle, material, and slicer profile. Guideline, not rule. Printer design, filament, flow rate, and temperature all shift the practical edges. A Common 80% Upper-Bound Heuristic Some guidance stretches the ceiling to 80% instead of 75%. On a 0.4 mm nozzle that moves the maximum from 0.30 mm to about 0.32 mm. Small gap. Two figures, one limit. The inconsistency is the useful part, because a maximum is an approximate edge rather than something to aim at. Nozzle Diameter Min Layer Height Standard Layer Height Max Layer Height 0.2 mm 0.05 mm 0.10 mm 0.15 mm 0.4 mm 0.10 mm 0.20 mm 0.30 mm 0.6 mm 0.15 mm 0.30 mm 0.45 mm 0.8 mm 0.20 mm 0.40 mm 0.60 mm 1.0 mm 0.25 mm 0.50 mm 0.75 mm BEFORE YOU CHANGE A NOZZLE AT HOME Swapping a nozzle means handling a hot end and a heated bed. NIOSH guidance for makerspaces, schools, and libraries and Stanford EHS 3D printing guidance both point to enclosed machines, adequate ventilation, and manufacturer-recommended filament. With children in the room, an adult should handle the swap and the first print after it. Let parts cool fully before anyone touches them. Layer-Height Heuristics by Nozzle Size: Verify the Profile The ranges below are generic heuristics, not AOSEED specifications or guaranteed settings. Confirm that the exact printer supports the installed nozzle and use only manufacturer-validated layer-height, material, temperature, and flow profiles. Layer Height for a 0.2 mm Nozzle A 0.2 mm nozzle is commonly chosen for small XY features and fine detail, but the supported layer heights depend on the printer, nozzle design, material, and flow profile. Use the manufacturer's tested values; do not transfer a generic minimum or maximum to unsupported hardware. Layer Height for a 0.4 mm Nozzle For a 0.4 mm nozzle, 0.1–0.3 mm is a common heuristic band, not a universal setting range. Start with the exact printer’s supplied 0.2 mm profile and use only finer or coarser profiles approved for that nozzle and material. Layer Height for a 0.6 mm Nozzle A 0.6 mm nozzle can trade fine detail for wider extrusion and higher throughput when the printer supports it. Use the supplied 0.6 mm profile rather than treating 0.15–0.45 mm or 0.3 mm as a universal range or default. Layer Height for a 0.8 mm Nozzle A 0.8 mm nozzle may suit large shells or rough prototypes on compatible hardware, but its usable layer range is limited by the validated hot end, material, extrusion width, and volumetric flow. Confirm an official profile before use. Layer Height for a 1.0 mm Nozzle A 1.0 mm nozzle requires a printer and hot end designed for the needed flow. Do not infer a 0.25–0.75 mm operating range from diameter alone; use the exact manufacturer's supported profile and keep model features large enough for the extrusion width. Layer Height on a Kids 3D Printer Some family-oriented workflows place layer height behind named profiles such as draft, standard, or fine. That can reduce first-print decisions, provided an adult can still verify the selected profile, preview, material, and supported range. The setting still matters when a child asks why one print looks rougher than another. A useful family workflow offers tested presets first, then exposes layer-height control and a preview when the learner is ready to compare a draft profile with a fine profile on the same model. A useful teaching sequence is to print one model with the standard approved profile, then compare it with a fine or draft profile while recording print time and visible surface differences. Family workflow Preset-led controls Advanced controls Starting point Tested profiles with fewer visible decisions A tested profile plus settings that can be changed deliberately Layer-height access May be represented as draft, standard, or fine Exact values and variable layer height may be available Preview Confirm whether the app shows time and support changes Layer-by-layer preview is useful for comparison and diagnosis Typical fit Younger beginners who want a reliable start Older learners who want to test and troubleshoot A LAYER-HEIGHT SETTING IS USEFUL ONLY WHEN THE WORKFLOW ALSO MAKES THE TRADE-OFF CLEAR. LOOK FOR TESTED PRESETS, A LAYER PREVIEW, AND ENOUGH PROJECT VARIETY TO COMPARE DETAIL AGAINST PRINT TIME WITHOUT PROMISING THAT ONE PROFILE FITS EVERY MODEL. What Layer Height Should You Use for Different Prints? Match the setting to what the part has to do, not to what sounds precise. Table below assumes a 0.4 mm nozzle. What You Are Printing Start Here Why Miniatures and figurines 0.08 to 0.12 mm Faces, armour, and clothing folds need small vertical steps Everyday toys and organizers 0.16 to 0.20 mm Reasonable finish without doubling the job Functional brackets and mounts 0.15 to 0.20 mm Balanced. Add perimeters before chasing thinner layers Test fits and prototypes 0.25 to 0.30 mm The rough finish stops mattering if the design changes Large shells and containers 0.28 to 0.30 mm Fewer layers across tall geometry Parts you plan to sand or paint 0.15 to 0.20 mm Medium avoids deep ridges that need filling Curved decorative pieces 0.10 to 0.15 mm, or variable Stepping is most visible on gradual slopes First Layer Height and Variable Layer Height Two related settings deserve a separate check: first-layer height and variable layer height. Confirm both in the tested profile before changing the main layer height. First Layer Height The bottom layer has a different job from everything above it. It grips the build surface. It also gives the rest of the print a flat foundation. Which is why many profiles make it thicker on purpose. Use the exact printer’s validated first-layer profile. If adhesion or edge spread is poor, diagnose plate condition, Z-offset or calibration, line width, temperature, and flow according to the manual before changing layer height. Too thin and a slightly wrong Z offset shows immediately. Too much squish and the bottom edge spreads outward. These two work together. Change one, check the other. Variable Layer Height Thickness can change inside one model. Detailed curves get thin layers. Plain walls get thicker ones, and the slicer handles the transition. A figurine on a plain cylindrical base is the textbook case. The base gains nothing. The face gains plenty, so the time cost lands only where the geometry earns it. Less helpful when the whole part needs one resolution, and less predictable than a fixed profile when a functional part is being tested. Preview the changes. Keep every value inside the nozzle range. When to Go Thinner and When to Go Thicker When to go thinner Curved, sloped, or sculpted surfaces where stepping will be obvious Small vertical features carry the detail. Faces, text, shallow relief, thin decoration The piece gets displayed rather than used, and you would rather not sand it Small part, so the extra layer count costs minutes instead of hours Your printer already produces clean results at standard settings When to go thicker Checking fit, tolerance, or basic shape, with a revision already likely Large or tall part where layer count is what drives the print time The surface ends up hidden inside an assembly or flat against a wall Sanding, filling, or painting is coming anyway, so raw finish is not the goal A larger nozzle is fitted and can support the thicker layer properly Common Layer Height Mistakes Five common mistakes can make a layer-height change unhelpful. Check them before blaming the printer or changing several settings together. Choosing a layer taller than the nozzle can bond. Set the ceiling from nozzle diameter. If thick layers keep being the goal, fit a wider nozzle instead of forcing a narrow one to act like one. Using the smallest layer height for everything. Flat, simple models may gain little from ultra-fine layers, while print time rises because the machine must complete more layers. Ignoring the time trade. A fine profile can turn a short print into an all-day job. Read the estimate and choose the quality level the project actually needs. Forgetting the first layer. Normal layer height and first-layer height may differ because adhesion and surface detail have different requirements. Keep the combination within the tested printer and material profile. Changing five settings at once. Adjust layer height alone, print a small sample, and judge the result before changing another variable; otherwise it becomes difficult to identify which change helped. Conclusion Treat layer height as a quality-versus-time control, with nozzle diameter and the validated printer profile defining the usable range. For a standard 0.4 mm nozzle, a tested 0.2 mm profile is a practical baseline; move thinner for visible vertical detail or thicker for drafts only when the printer and material profile support it. Strength needs more care than one setting can give. Thinner layers measured stronger in tension in the PLA study above, but material, orientation, wall count, and temperature all matter, and thicker layers behave differently under impact. Test the actual part. For families, the practical approach is to choose a kids’ 3D printer with manufacturer-validated profiles and controls that a responsible adult can review. Before buying, verify the exact model’s supported layer heights, nozzles, materials, age and supervision guidance, current regional price, warranty, and return terms on the manufacturer’s current product page and manual. FAQs What is a good layer height for a 0.4 mm nozzle? A tested 0.15 mm or 0.20 mm profile is a sensible starting point for many prints. Use the printer and slicer manufacturer's profile first, then go thinner for visible detail or thicker for faster drafts within the supported range. Is a smaller layer height always better? No. Smaller layers can smooth shallow curves and improve vertical detail, but they increase the number of layers and therefore the print time. Choose thinner layers for miniatures, faces, and gentle slopes. Choose thicker layers for prototypes, hidden parts, and large simple shapes. Keep the tested profile when the visual difference is not worth the added time. Does layer height affect 3D-print strength? It can, but the result depends on the load and the rest of the print setup. Layer bonding changes with temperature, speed, and material. Orientation determines whether a load pulls along or across layer interfaces. Walls, geometry, and nozzle width may matter more than a small layer-height change. How does layer height change print time? A thinner layer creates more layers for the same model height, so the printer repeats perimeter, infill, and travel work more times. The exact increase depends on the model and profile, so compare the slicer estimates before printing. Can layer height be larger than the nozzle diameter? It should not be. Many slicers limit maximum layer height to about 80% of nozzle diameter; for a 0.4 mm nozzle that is about 0.32 mm. Follow the validated profile for the specific printer and nozzle. When should I change the nozzle instead of the layer height? Change the nozzle when the project needs a different extrusion width or throughput, not merely a different vertical finish. Use a smaller nozzle for tiny XY features that a standard extrusion line cannot reproduce. Use a larger nozzle for large models or strong wide beads when the printer supports it. Rebuild the printer profile after a nozzle change; do not reuse values meant for another diameter. Sources National Institute of Standards and Technology, “Additive Manufacturing FAQs” Materials (NIH PMC), “An Experimental Study on the Impact of Layer Height and Annealing Parameters on the Tensile Strength and Dimensional Accuracy of FDM 3D Printed Parts” Polymers (NIH PMC), “Optimisation of Strength Properties of FDM Printed Parts, A Critical Review” Materials (NIH PMC), “The Influence of Model Orientation on the Surface Roughness of Polymeric Models Produced by FFF, mSLA, PJ, and SLS Methods” CDC National Institute for Occupational Safety and Health, “Approaches to Safe 3D Printing: A Guide for Makerspace Users, Schools, Libraries, and Small Businesses” Stanford University Environmental Health & Safety, “3D Printing Safety and Health Guidance”
